DC trolley with led lights kit for GERMINATION AND GRAFTING
DC trolley with led lights kit for GERMINATION AND GRAFTING
DC trolley with led lights kit for GERMINATION AND GRAFTING
DC trolley with led lights kit for GERMINATION AND GRAFTING
DC trolley with led lights kit for GERMINATION AND GRAFTING

DC trolley with led lights kit for GERMINATION AND GRAFTING

Code:37C10400G-1pz+opt29070003
price each619.00

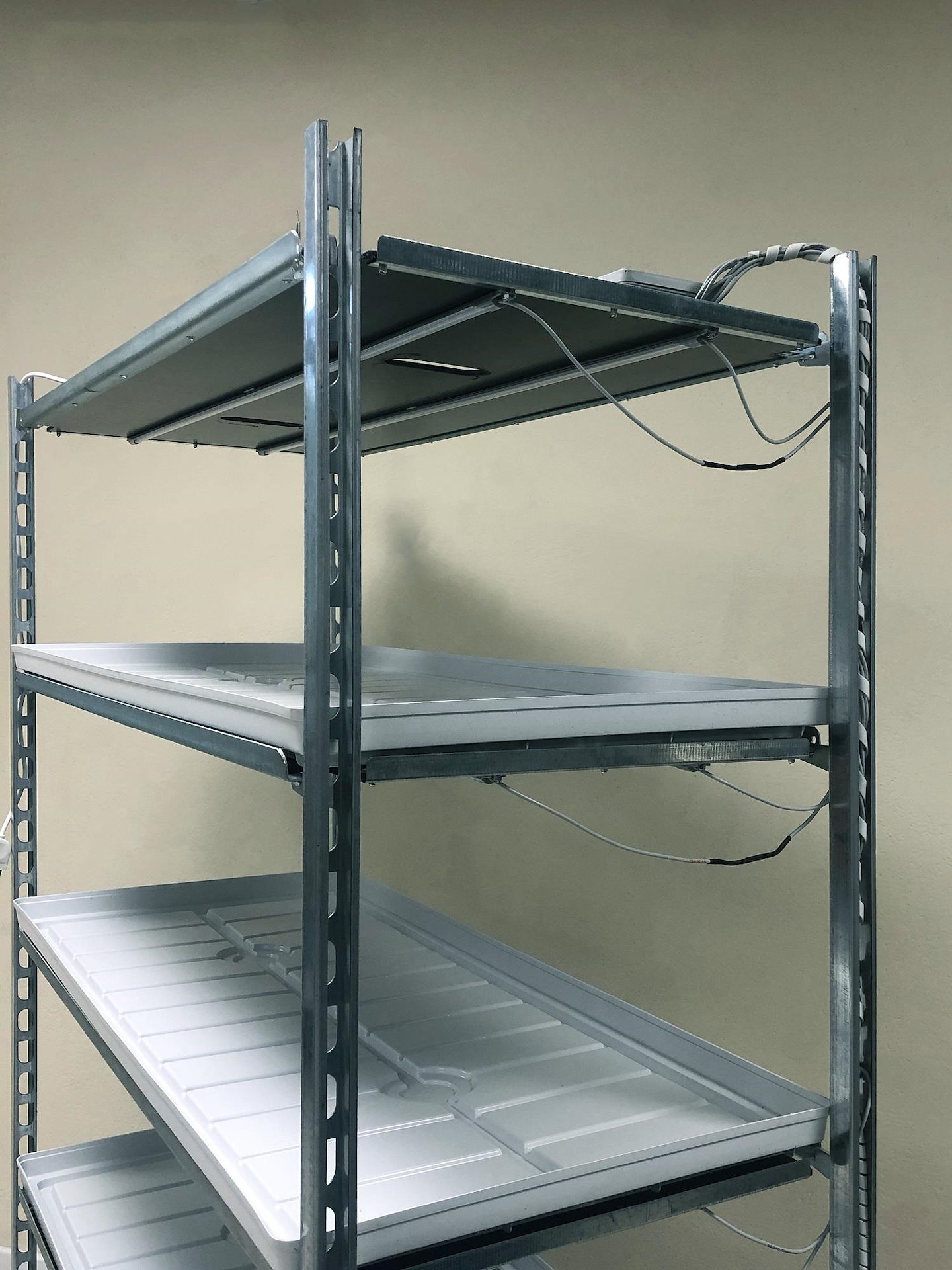

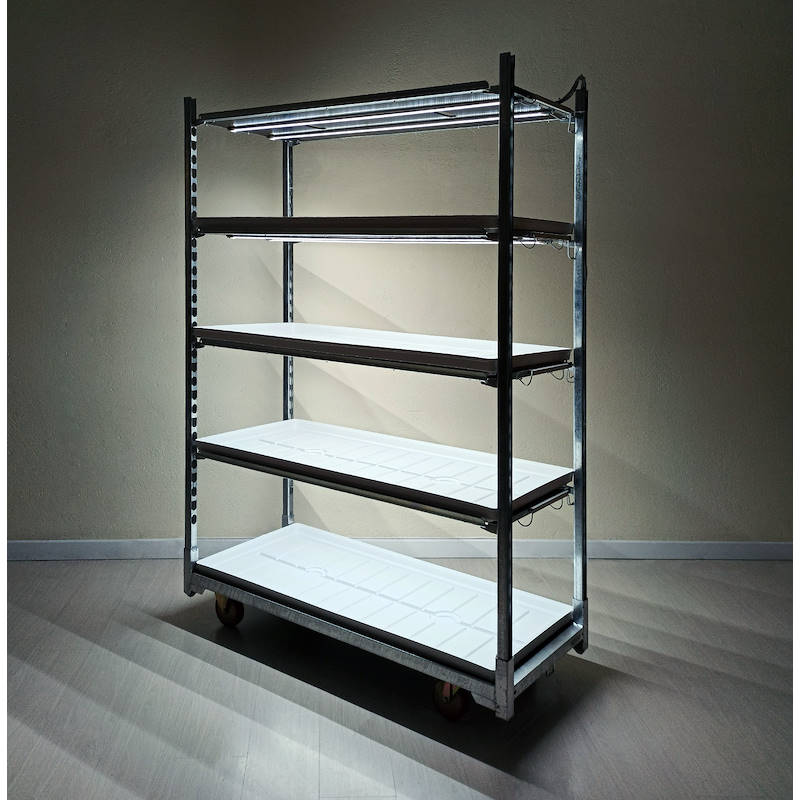

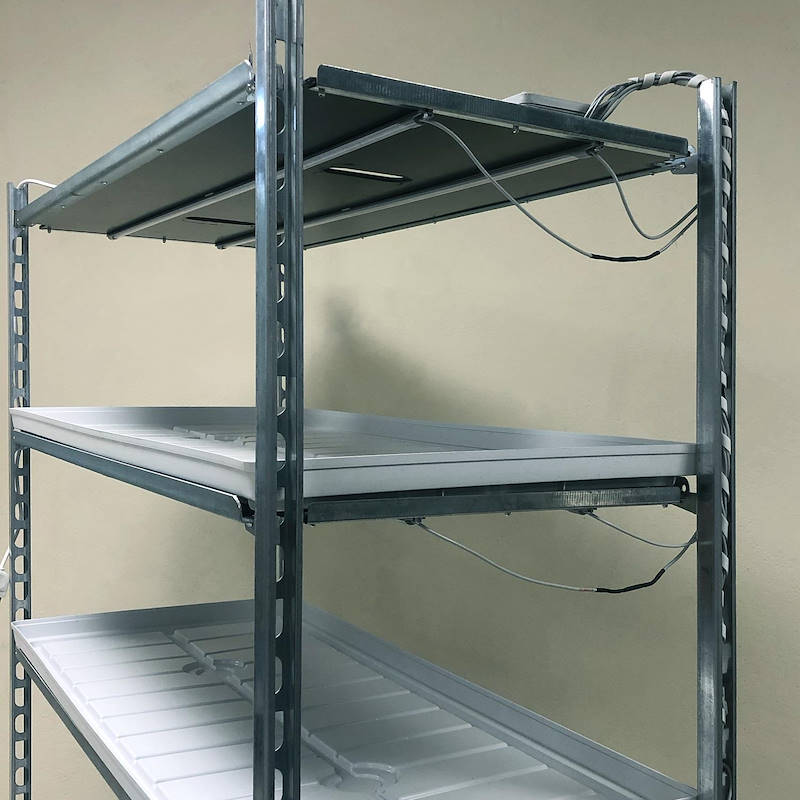

 Trolley consisting of
  • base with two fixed and two swiveling wheels

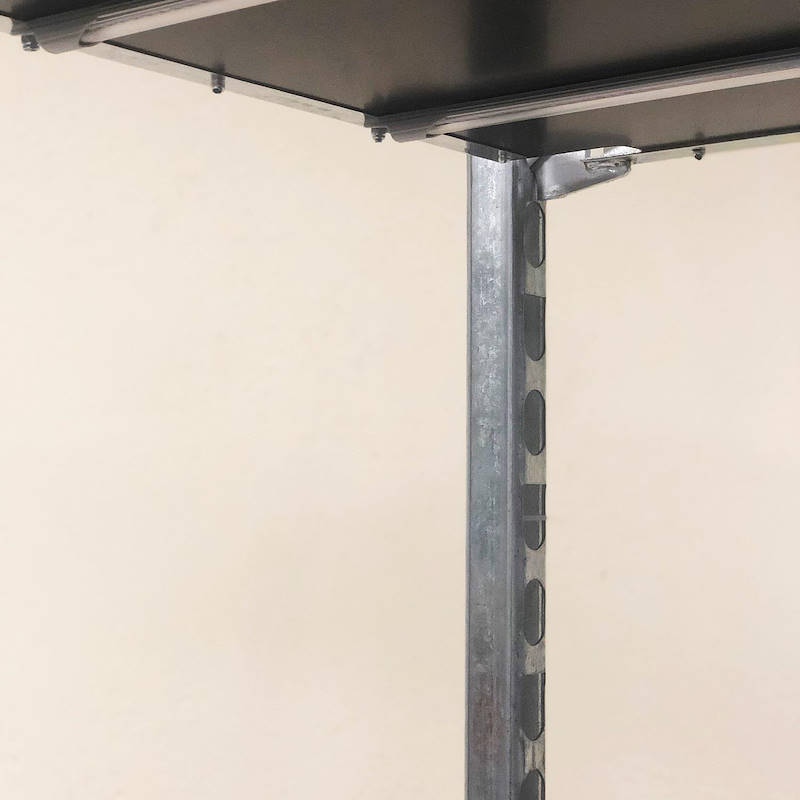

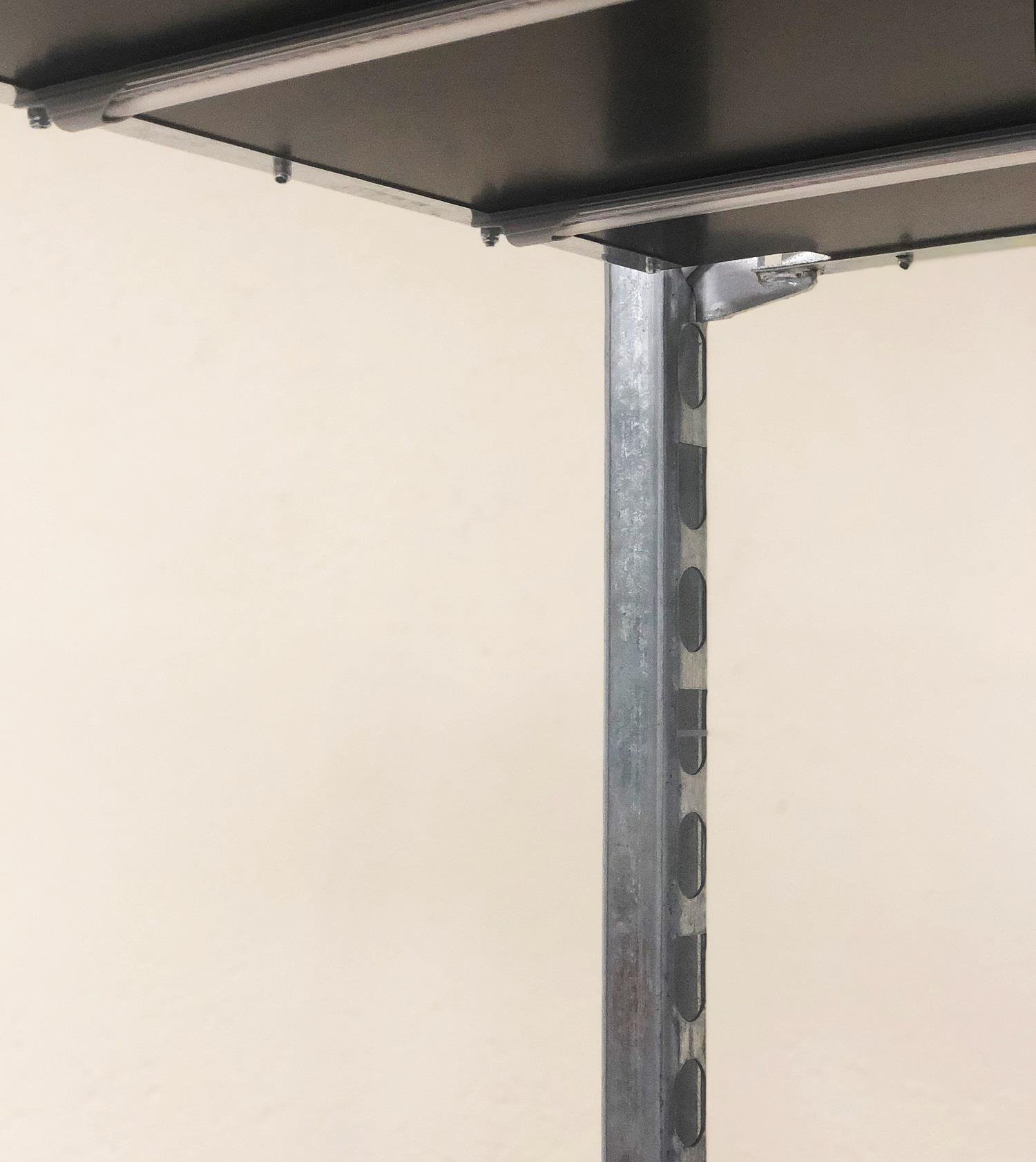

  • 4 columns
  • 4 DC shelves
  • lights kit (for the 4 shelves of the trolley)
  • 4 DC water tray
CharacteristicsFull Description
SLIM - 2 lamps per shelf
CIRCULAR - 1 lamp per shelf
1 DC cart
6 DC carts
18 DC carts
Without DC water trays
With DC water trays
Order summary:
price each619.00
products total619.00
Order total619.00
Characteristics
Full Description

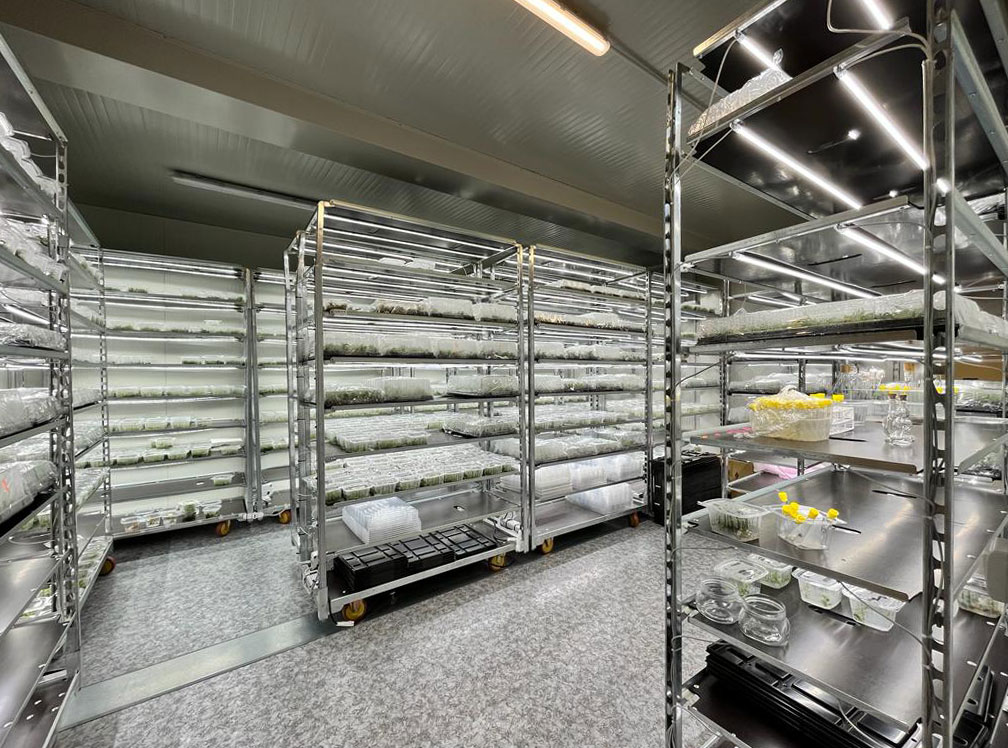

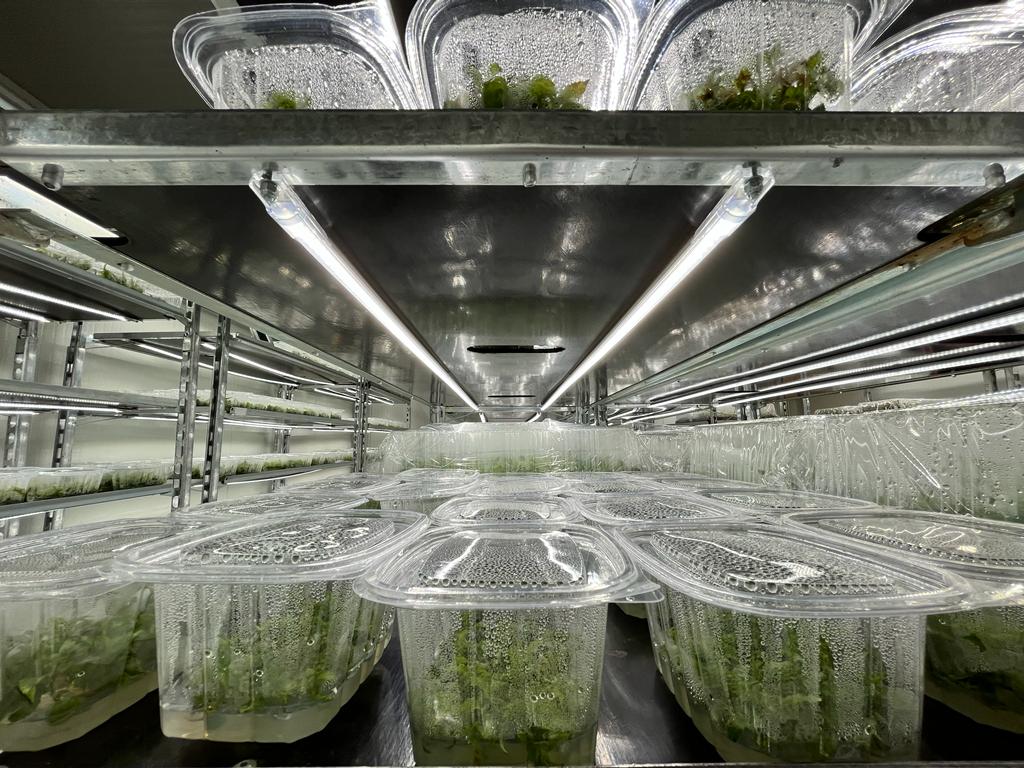

Nowadays the nursery techniques of producing small and young plants in an indoor environment provide for different protocols depending on the type of starting material. In vitro micropropagation, the production of cuttings, the grafting of young horticultural plants, etc., are generally conducted in controlled environments from a climatic and health point of view, the so-called clean rooms, on special illuminated shelves.

To respond to this growing market demand, the DC trolley with lighting kit was developed thanks to the collaboration between Organizzazione Orlandelli, leader in the supply of floriculture equipment, and C-LED,

The pluses of indoor cultivation with Orlandelli trolleys and C-LED lights
  • Better growth cycles
  • Increase in production
  • Trolleys optimized for floriculture
Types of use of the cold white light spectrum:
- Grafting (e.g. varieties of melon, tomato ..)
- Nursery
- Germination
- Experimentation (e.g. winterization: experimental tests on varieties to be sown in the autumn months such as wheat, barley ..)
- Micropropagation (e.g. fruit trees: peach, apricot, olive, kiwi ..)
- Cutting / Rooting (e.g. hemp)

Main advantages of the two types of lights:

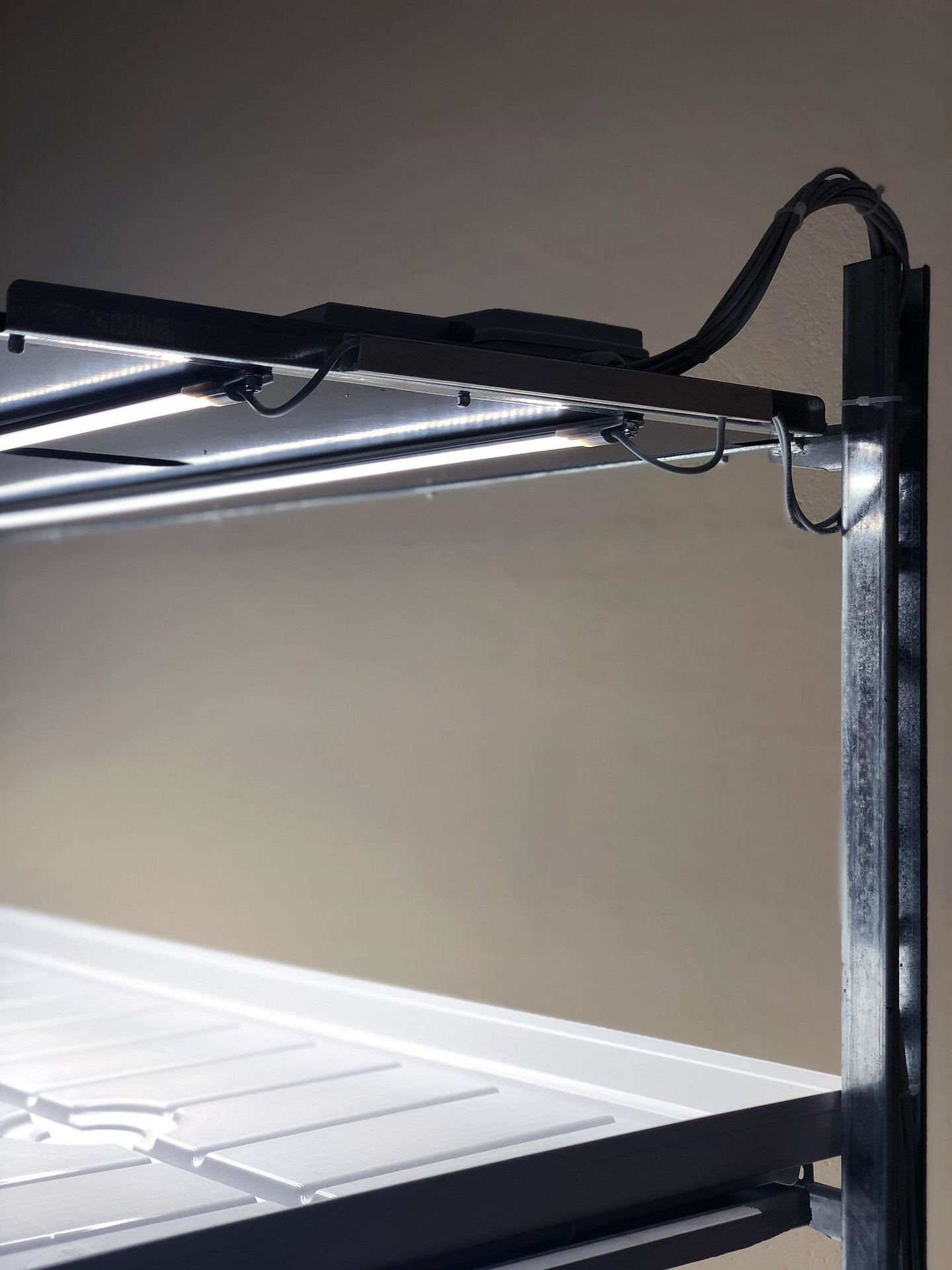

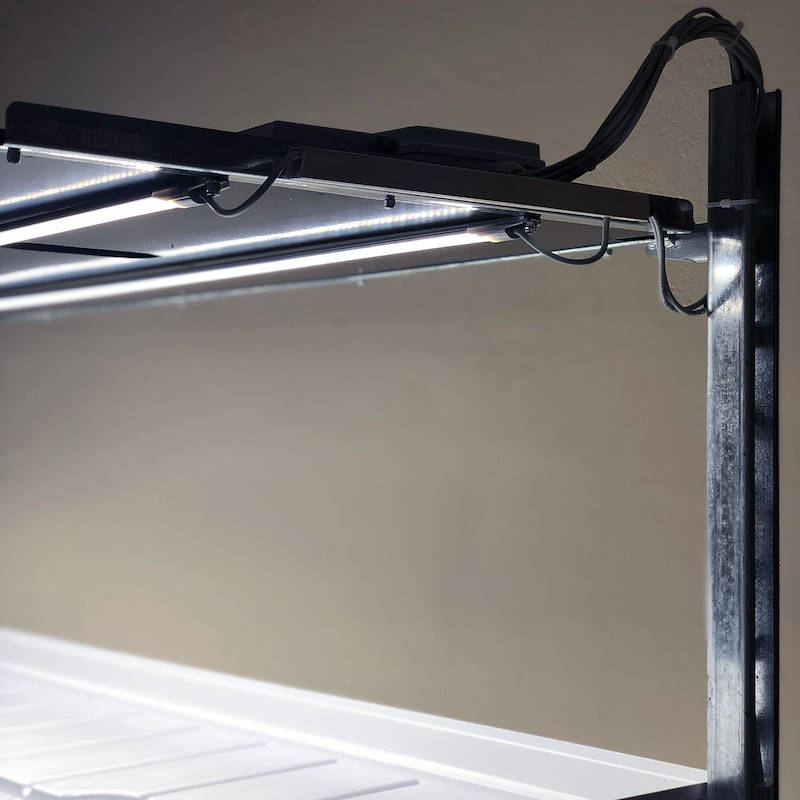

SLIM: double light per shelf for maximum performance of the lighting process
CIRCULAR: one light on each shelf, designed for a good practicality of use

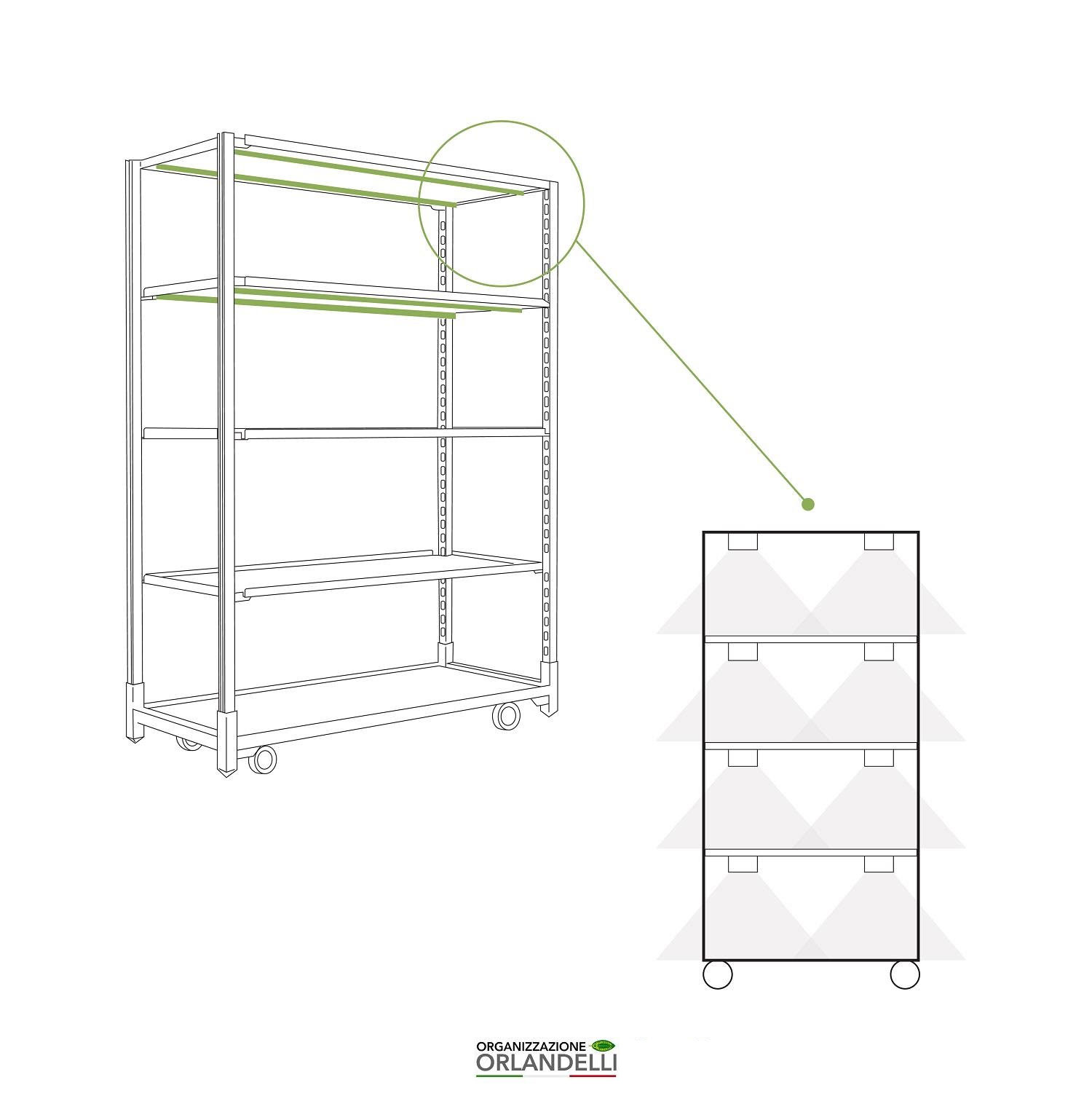

Dimensions of the trolley
The trolley on which the LED lamp kit is applied is a DC trolley. For this reason, the dimensions of the trolley respect the standard measurements of a DC trolley: height 1900 mm, width 1350 mm, depth 565 mm.

For more information on the products or to provide assistance on the germination / grafting chamber you want to create, write us an email at info@orlandelli.it or call 0376960311.

Download technical data sheet SLIM led kit_COOL WHITE

Technical description - LED lights for GERMINATION AND GRAFTING



The COOL WHITE led kit is the ideal light to stimulate germination or grafting and all phases that require “stasis” or a suspension of plant growth

SLIM CIRCULAR
4 shelves
2 led lights per shelf (8 tot -120 W)  1 led light per shelf (4 tot - 68 W)
Distance between shelves 40 cm
Cart dimensions (L x W x H) 1350 x 565 x 1900 mm

Technical comparison - SLIM LED | CIRCULAR LED

SLIM LED CIRCULAR
Germination | Grafting USAGE Germination | Grafting
LIGHT SPECTRUM 6500 K
22 PPF 35
40 - 75 PPFD 35 - 45
13 V POWER 21 V
220 (driver) | 24 V (led) DC voltage 220 (driver included)
120° Beam angle 115°
max 35° | min -10° TEMPERATURE amb max 35° - min -20°
IP65 Degree of protection IP67
1250 x 12 x 16 mm DIMENSIONS   L x W x H 1290 x 28 x 28 mm
